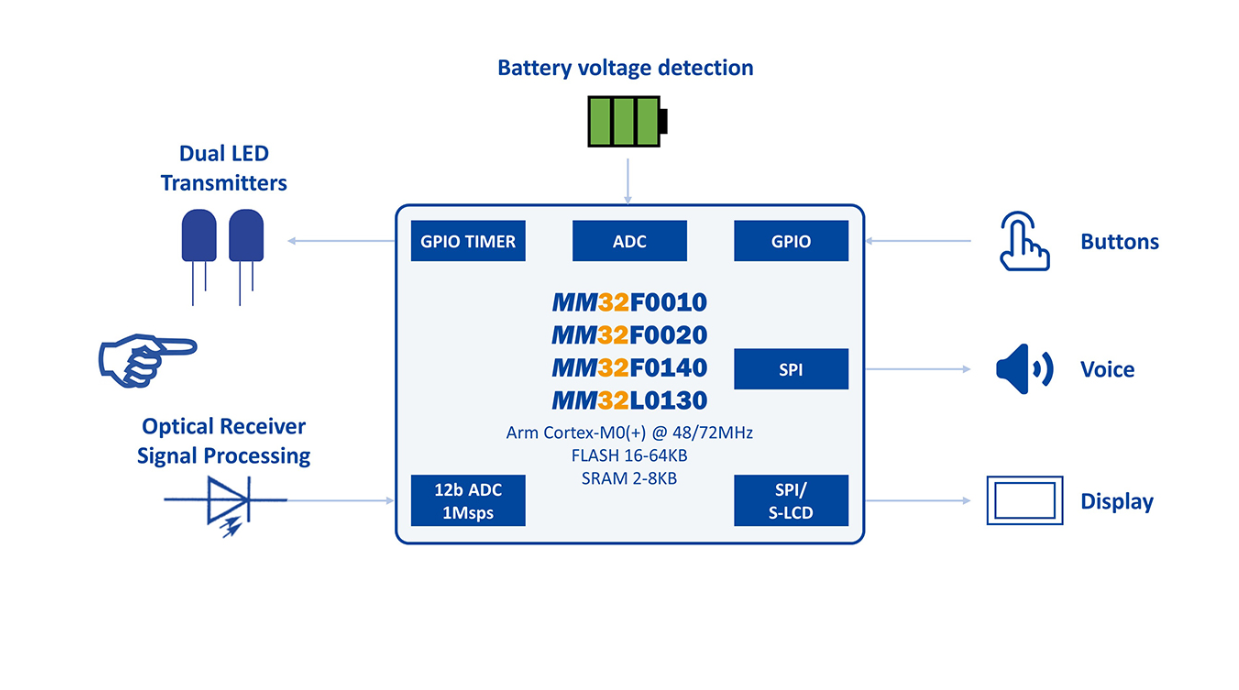

In the field of modern medical health monitoring,portable oximeter has been paid more and more attention because of its convenience and practicality.This kind of equipment requires extremely high performance of the core control components,especially the microcontroller with high-precision sampling and efficient data processing capabilities.This paper will introduce the application scheme of portable oximeter based on smart MM32 series microcontroller in detail,and share how this scheme can meet the strict requirements of medical equipment for performance,power consumption and reliability.
There are few microcontrollers in the market that can meet the requirements of high precision and high sampling of portable oximeter.With its excellent performance and energy efficiency ratio,MM32 series microcontrollers have become an ideal choice in this field.MM32 series microcontrollers not only provide enough processing power,but also perform well in power control and integration,providing a perfect solution for portable medical equipment.
Second,the core advantages of MM32 microcontroller in oximeter
1.Efficient processing capacity
①MM32 microcontroller adopts Arm®Cortex-M0 core,and the highest running frequency is 72MHz.
(2)Strong computing ability,which can simultaneously process the signal acquisition of oxygen saturation,algorithm operation and LED display operation.
③Ensure the real-time calculation and quick response of the blood oxygen concentration algorithm.
2.Precision data acquisition
①integrate high-performance 1Msps 12-bit ADC module.
②Smart MM32 microcontroller can temporarily store and process the photoelectric sampling results with a large amount of data.
③Significantly improve the sampling efficiency and provide a high-precision data base for the calculation of oxygen saturation.
3.Excellent storage characteristics
①Flash supports up to 100,000 erasing cycles.
②MM32 microcontroller can be directly used as user data storage medium without external EEPROM.
③Effectively simplify system design and reduce BOM cost.
4.Ultra-low power design
①Smart MM32 microcontroller can supply power by using two AAA alkaline batteries.
②The low power consumption modes of the series②MM32F00xx and MM32F01xx support continuous operation for up to 36 hours.
③MM32L0130 integrated segment code LCD controller,with standby power consumption as low as 100nA.
④Significantly prolong the service time of the equipment and improve the user experience.
Third,Technical Specifications of MM32 Microcontroller
①Core:MM32 microcontroller adopts Arm®Cortex-M0 core,with the highest frequency of 72MHz.
②storage configuration:16-64KB Flash,2-8KB SRAM.
③Power supply range:2.0V-5.5V wide voltage design.
④Communication interface:SPI/UART/LP UART/I2C/CAN and other options.
⑤Power consumption management:Ultra-low normal operation power consumption,supporting various low power consumption modes.
⑥Packaging option:MM32 microcontroller provides various packaging forms of 20/32/48/64 pins.
Four,recommend the MM32 microcontroller model for portable oximeter.
①MM32F0010-Basic selection,excellent cost performance.
②MM32F0020-Balancing performance and power consumption
③MM32F0140-Enhance processing capacity
④MM32L0130-Integrated LCD control with extremely low power consumption.
Smart MM32 series microcontrollers provide a complete and efficient solution for portable oximeter.MM32 series microcontroller series has excellent performance parameters,excellent power control and strong anti-interference ability,which makes it an ideal control core of medical portable monitoring equipment.Whether for medical equipment manufacturers or end users,the oximeter scheme based on MM32 microcontroller can provide excellent guarantee in terms of accuracy,endurance and reliability.With the increasing demand for personal health monitoring,it is becoming more and more important to choose a suitable microcontroller scheme.With its professional technical characteristics and optimized system design,MM32 microcontroller is becoming the preferred solution in the field of portable medical equipment.If you have any requirements,please feel free to contact us.
Keywords: MM32 series,smart microcontroller
