1.Brief introduction of application solution of disinfection cupboard.
In the working mode of disinfection cupboard,accurate monitoring of humidity in the machine body is an important link to ensure the thorough drying of tableware and realize effective sterilization.Yingshang's disinfection cabinet application solution is equipped with the temperature and humidity sensor GXHT30A chip of Zhongke Yinhe Core,which provides superior temperature and humidity sensor chip for disinfection cupboards and ensures the long-term reliable operation of monitoring links.
2.Introduction of GXHT30A temperature and humidity sensor chip.
The temperature and humidity sensor GXHT30A is a highly integrated single-chip temperature and humidity integrated sensor chip.Based on the advanced extremely weak signal detection technology of Zhongke Yinhe Core and the integrated development of MEMS technology,it can directly integrate highly sensitive MEMS humidity sensors on silicon-based CMOS wafers,and realize the real single-chip processing scheme.This design effectively eliminates the interference of data transmission between multiple chips,not only significantly reduces the chip occupation area,but also effectively improves the reliability and structural stability of the package.

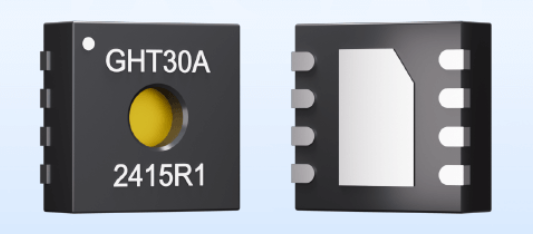

The temperature and humidity sensor chip is packaged in subminiature DFN,with a size of only 2.5mm x 2.5mm,which is very space-saving and easy to be embedded in various devices with high volume requirements such as disinfection cupboards.Its power supply voltage range is 2.0V to 5.5V,which endows it with excellent power supply adaptability and can easily match different system power supply environments.
3.Basic characteristics of temperature and humidity sensor GXHT30A.
①Full range calibration and temperature compensation,output of analog voltage,good linearity(10%-90%RH).
②Wide voltage design(2.0V-5.5V)with strong compatibility.
③Working temperature-45℃~+130℃.
④Typical accuracy is 3%RH(humidity)and 0.3℃(working temperature).
⑤Parallel measurement of working temperature and humidity,and output of independent pins.
⑥Single-chip integration of temperature and humidity sensor,high safety,reliability and long-term stability.
⑦The temperature and humidity sensor adopts miniaturized DFN8 package.
⑧GXHT30A-Q passed the AEC-Q100 car code certification.
